Bike Headset Bearings- All Sizes - Blueseal Bike Bearings™

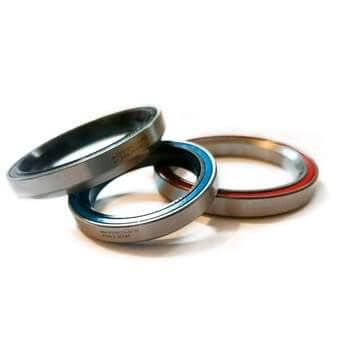

Individual replacement Blueseal Bike Headset Bearings™. These bearings are direct replacement bearings for a range of branded headsets including but not limited to FSA, Cane Creek, Hope and many more.

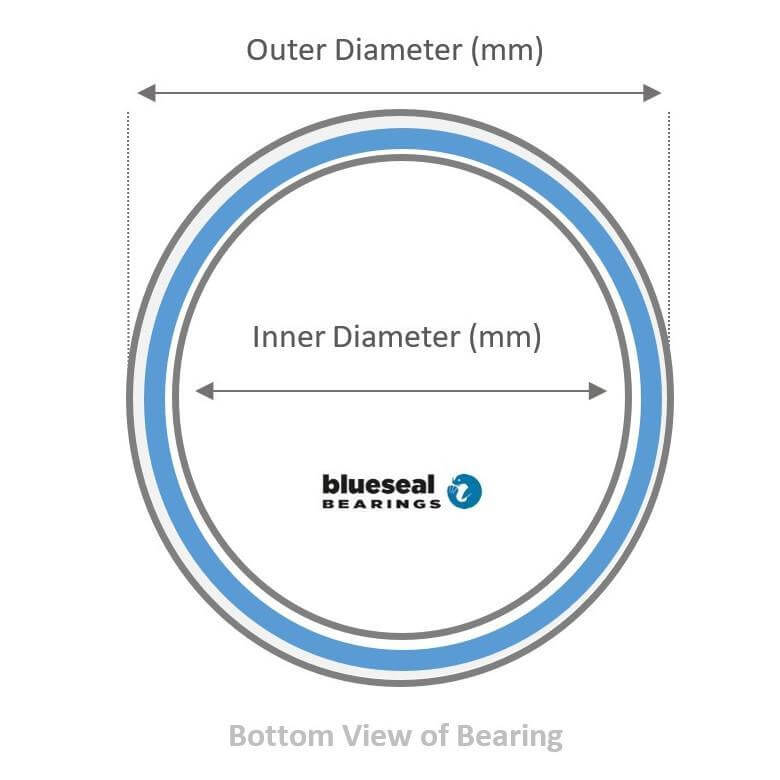

If you don't know the code of your bearing but have the rough measurements, just match them to the measurements below. To get the angle of the inner race use the handy trick below.
Headset bearings are notoriously hard to identify and the same bearing can use different codes to identify them. If your code isn't listed here or you are not sure what headset bearing you need please Email Us and we will help you find the bearing you need.
The chances are we have the bearing you need.
Example No) Bearing Code | Dimensions | Inner/Outer Chamfer Angle | Alternative Codes & Common Uses
1) MR042 | 30.5 x 41.8 x 8H | 45/45 | TH870 MR121 MH-P08H8
2) MR121 | 30.5 x 41.8 x 8H | 45/45 | With lip on Inner Race TH870E MHP08F
3) MR122 | 30.15 x 41 x 6.5H | 36/45 | TH873E TH873R MR054 MR115 MH-P03K
4) MR170 | 40 x 52 x 7H | 45/45 | TH070 MP-P16 TH070E TH070R
5) MR127 | 40 x 51.8 x 8H | 36/45 | TH073 MR110 TH073R TH073E TH073S
6) MR151 | 37 x 48.9 x 7H | 45/45 | NO8c-138 MHP21
7) MH-P16H8 | 40 x 52 x 8H | 45/45 | ACB52
8) MR168 | 34 x 46.8 x 7H | 45/45 | TH970 MR082 MHP22 TH970E TH970DJ TH970S TH970R
9) MH-P03 | 30.15 x 41 x 6.5H | 45/45 |
10) MR075 | 30.2 x 41 x 7.8H | 36/45 | TH800
11) P08H7 | 30.15 x 41.8 x 7H | 45/45 |
12) MR136 | 32.8 x 41.8 x 6H | 45/45 | No.51
13) MR137 | 37 x 46.9 x 7H | 45/45 | No.54
14) MH P25K | 40 x 52 x 6.5 H | 36/45 | Cane Creek 52mm Lower Bearing
15) MR043 | 30.2 x 41.5 x 6.5H | 36/36 | TH872E MR049s MR118
16) MR040 | 30.2 x 41 x 7.7H | 36/45 | TH873/DJ .
17) AC3344H6 | 33 x 44 x 6 | 36/45 | Lower bearings on some Canyon Frames
18) AC3544 | 35 x 44 x 5.5 | 36/45 | Upper bearing used on some Canyon Frame
19) ACB460H7 | 34.1 x 46 x 7 | 45/45 | Lower bearing Scot Foil
20) MH-P22 | 34.1 x 46.9 x 7H | 45/45 | Lower bearing Focus
21) 6707 LLB | 35 x 44 x 5mm | 90/90 | Acros A170 Upper
22) MR314357 | 31 x 43.5 x 7mm | 90/90 |
23) ACB458 | 36.8 x 45.8 x 6.5H | 45/45 | Future Shock Headsets
24) P03H7 | 30.15 x 41 x 7 | 45/45 | Scott Foil Upper bearing TK410
25) ACB519H8 | 40 x 51.9 x 8 | 45/45 | Ritchey Lower
26) ACB515H7 | 40 x 51.5 x 7 | 45/45 | Ribble Headset Lower
27) MH-P08 | 30.15 x 41.8 x 6.5 | 45/45 |
28) MR155 | 30.15 x 41.8 x 7.7 | 45/45 | TH870/DJ P08H7.7
29) MR031 | 37 x 48.9 x 6.5 | 36/45 | IS-2-138
30) ACB3748H7 | 37 x 48 x 7 | 36/45 | Acros A170 Lower
Have a FSA headset and its not listed here? Let us know what model you have as we most likely have the headset bearing for you.




Seal Design
Blueseal Bike Bearings™ have top quality rubber seals. The better the seal iharder for water and dirt to get in and the grease to get out! This is the most important feature for a bike bearing.
Premium Grease
Blueseal Bike Bearings™ contain Mobil XHP 222 grease. Standard stock bearings are designed for use in machinery and contain very little amounts of a non-specific bearing grease (Approx. 20%) This offers little protection against rain and dirt ingress.
Premium Waterproof Grease
Mobil XHP 222 is a premium marine specific grease with high wash out resistance that is designed for use in poor conditions. This means the grease stays in the bearing for longer and offers the best protection against dirt, rain and muddy water.
Strong Composition
Blueseal Bike Bearings™ are built using the best quality materials, this higher class of bearing run smoother & last longer.
